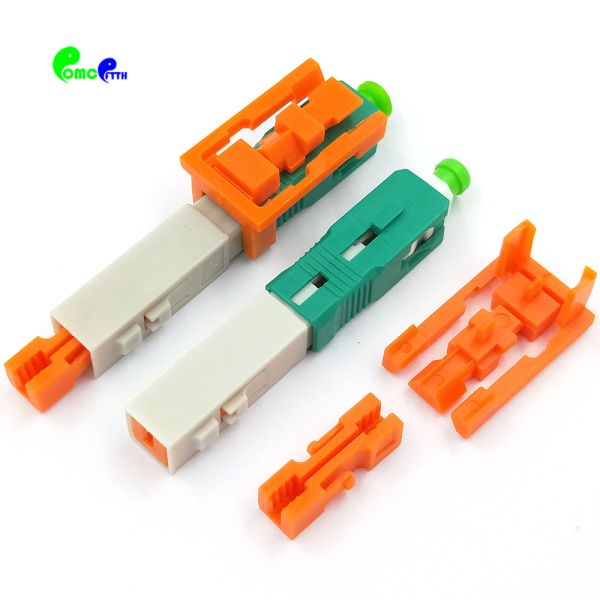

SC UPC SC APC Field Fast Installation Fiber Optic Connector Optical Fiber Single Mode Fast Connector for FTTH drop cable
Field Fast Installation Fiber Optic ConnectorTerminated onto 0.9/2.0/3.0/1.6x2.0/2.0x3.0mm FTTH Drop Cable in FTTX Project.
Specifications
| Connector Type | SC | Polishing | UPC and APC |
| Ferrule | Ceramic | V-Groove | Plastic Material |
| Cable Diameters | 2x3mm FTTH Drop Cable 1.6x2mm FTTH Drop Cable | Length | 53MM |
| Insertion Loss | ≤0.3dB(typical);≤0.5dB(Max) | Return Loss | UPC≥40dB;APC≥50dB |
| Tension Strength | ≥30N | Operating Temp | -40°C~+75°C |
Advantages of SC Fast connetcor
1. Our own patent design, Independent two-way cable lock unit, Can adapt to 2 types of optical cables 2x3mm and 1.6x2mm FTTH Drop Cable
2. The locking cable has tight teeth and can withstand 50N tensile force, which meets the demanding requirements of tensile strength.

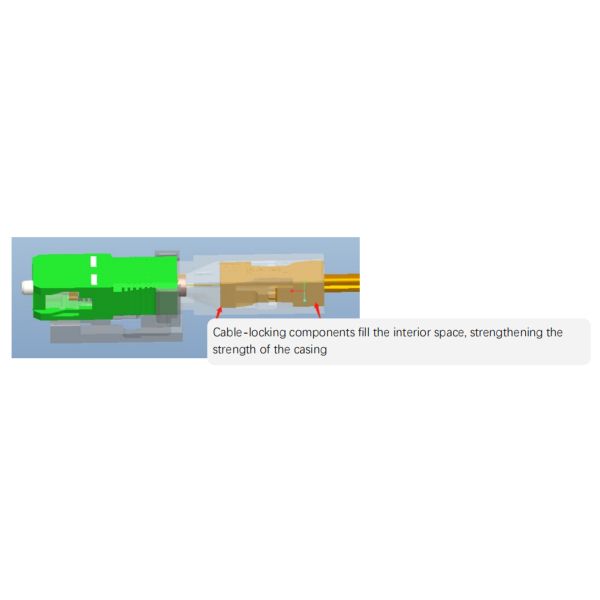

3. The long two-way locking cable parts fill most of the empty shell, effectively avoiding damage caused by falling / stepping
4. When the fiber is penetrated, the internal avoidance is extremely large, which can effectively prevent the end face of the fiber from touching the inner wall.
5. If it needs to be removed and reinstalled after installation, it can be unlocked by finger press;
6. V-groove compaction structure, which contains 0.125mm bare fiber and 0.250mm coated fiber; (enhance the tensile strength of bare fiber)
7. The mechanical lock structure and the corresponding cut fiber fixed length design directly guarantee the 0.2mm micro-bend length
8. Discharge treatment of the embedded fiber cutting surface to form microspheres, and ensure that the fiber cut in the field is 100% transparent. The core is closely connected to the exhaust, which can effectively improve the return loss parameters and achieve better insertion loss parameters
Application in FTTX
• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• CATV
• Optical access network
• Fiber to the Subscriber (FTTX) applications
• Optical cable interconnection
• Maintenance or emergency restoration of fiber networks
• Repair and replacement requirements
• Fiber optic equipment
Our Services
1, Free samples--- we can supply free products for testing .
2, Brand---OEM service acceptable
3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4, Quality Level---High quality as per your requirements.
5, Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8, Optical Network Project Consultant---Professional experts help you.
9, New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
