53mm FTTX FTTH SC APC Quick Connector Field Assembly Connector
Field Assembly Connector SC APC Fast Connector 53mm FTTH SC APC Quick Connector
Field installation connector also be called Fast install connector is a new kind of connector that could be used in FTTH project scene. They don’t need to polishing, no epoxy. They could be installed in the field and make connection less than two minutes. Of course, It don’t need fused the fiber. Just some little tools enough, so it could save time and cost
The Field Assembly Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibers in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.

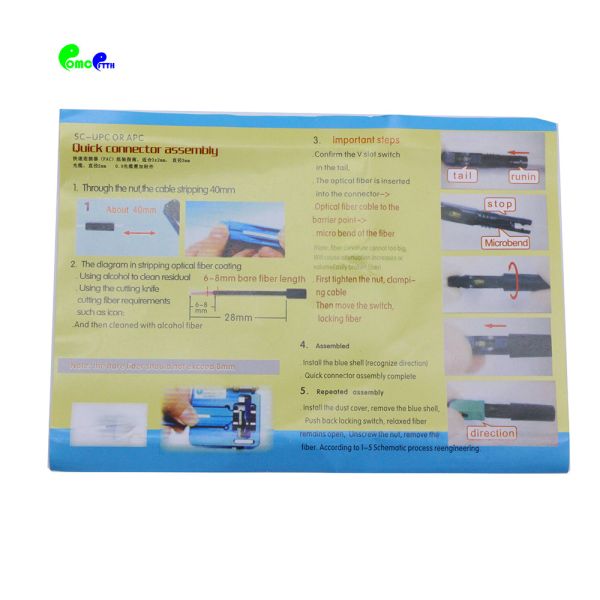

Assembly of the FC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector. Installation takes just minutes and couldn't be easier.
The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.
Working principle
Feature
• No epoxy and polishing required
• Quick and easy fiber termination
• Precision mechanical alignment insures low insertion loss
• Superior optical performance
• Streamlined component design, convenient operation
• Pre-installed, on-site assembly without end face grinding and consideration
• Uses proven, molded v-groove technologies
Specifications
| Connector Type | SC | Polishing | APC |
| Ferrule | Ceramic | V Groove | Plastic |
| Cable Diameters | 0.9/2.0/3.0mm Simplex cable 2x3 FTTH Drop Cable | Dimension | 53mm |
| Insertion Loss | ≤0.3dB(typical) ≤0.5dB(Max) | Return Loss | APC≥50dB |
| Tension Strength | ≥30N | Operating Temperature | -40°C~+75°C |
Application in FTTX
• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• CATV
• Optical access network
• Fiber to the Subscriber (FTTX) applications
• Optical cable interconnection
• Maintenance or emergency restoration of fiber networks
• Repair and replacement requirements
• Fiber optic equipment
