Handhold FTTX Small Fusion Splicer Mini Splicing Machine - OMCFS - 115
OMCFS-115 Handhold Fusion Splicer, with high performance price ratio, is the main product of OMC Company. With SAMLL& smart appearance, reliable quality, OMCFS-115 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of FTTX project.
Features
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 150 X and Y view
4.3 inch 16:9 digital high-quality LCD screen, observe X and Y view at same time
Three in one fixture, splicing single fiber, cable indoor and pigtail
Available: OEM SERVICE.
Available language: English, Russian, Spanish, Portuguese, Italian, French, German
Specification.
| Model | OMCFS-115 Handhold Fusion Splicer |
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
| Cleaved Length | 8~16mm |
| Fiber Image/ Magnification | 300/150 |
| View Display | 4.3 inch digital high quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
| Battery Capacity | 300 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
| Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
| Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew) |
| Weight | 1.6KG (including battery), 1.1KG (excluding battery) |
| Dimension (LxWxH) | 200mm(L)×130mm(W)×98mm(H) |
Fiber SPlicer:
Fiber cleaning products

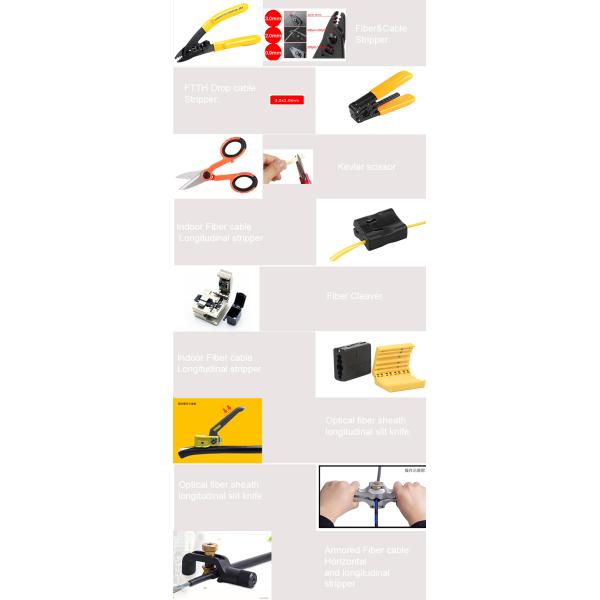

Fiber install&assembly tools
Fiber Test And Measurement tools

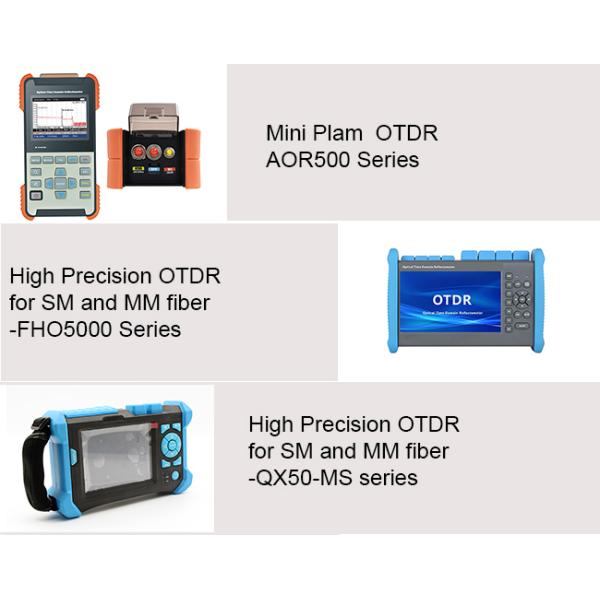

OTDR
