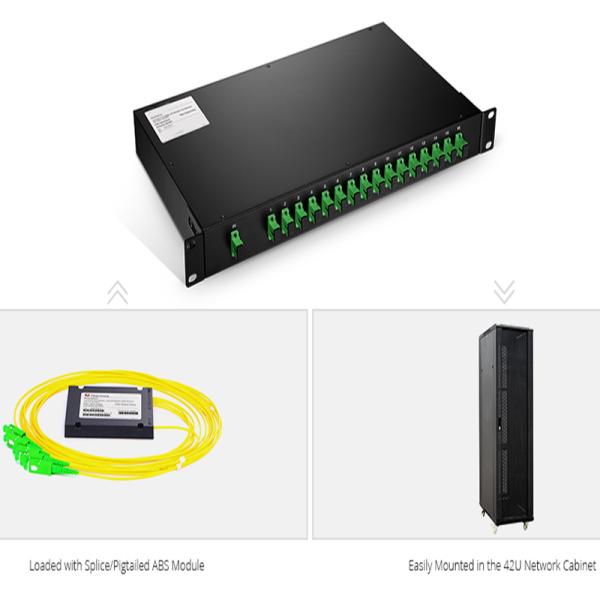

ABS Cassette PLC Splitter
Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
OMC ‘s ABS Cassette PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
Specification
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 | 17.1/17.4 | 20.4/21.0 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 | 16.8/17.1 | 20.1/20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss with Connector (Max) | dB | 4.4/4.6 | 7.7/8.1 | 10.8/11.3 | 14.1/14.4 | 17.4/17.7 | 20.6/21.3 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 | 17.1/17.4 | 20.3/21.0 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
Environmental Conditions:
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Operating Humidity | %RH | ≤93 |
| Storage Humidity | %RH | ≤93 |
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 100×80×10 | 100×80×10 | 100×80×10 | 120x80x18 | 120x80x18 | 140×114×18 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 100×80×10 | 100×80×10 | 100×80×10 | 120x80x18 | 120x80x18 | 140×114×18 |
Cable Infor
| Fiber type | G657A1 |
| Loose Tube | 900um,1.6mm,1.8mm,2.0mm |
| Connector | SC, LC,FC,ST,……. |
| 2xN Splitter | Only Single Chip |
Application
Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
