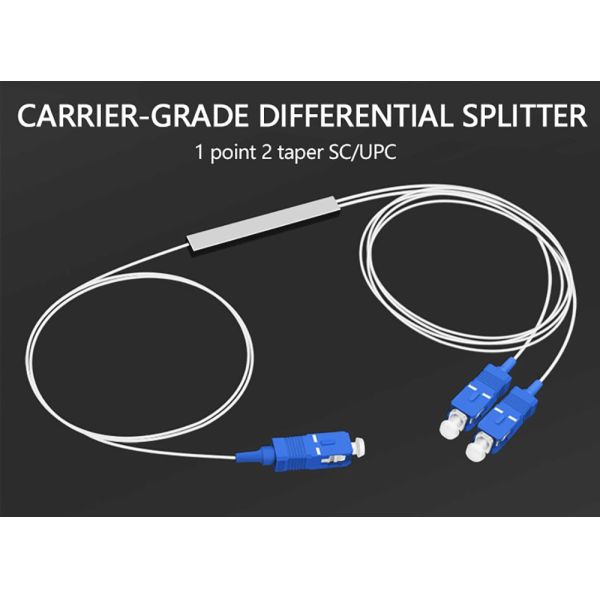

Fiber Optic PLC Splitter 1x2 Blockless With SC UPC 9 / 125μm Connector
PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
OMC ‘s Blockless PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
1x2 Blockless PLC Splitter in FTTH Solution
Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management. The following figure shows 1X8 blockless PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.
Specification
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260～1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1/4.4 | 7.4/7.9 | 10.5/11.0 | 13.8/14.1 | 17.1/17.4 | 20.4/21.0 |
| Insertion Loss without Connector (Max) | dB | 3.8/4.1 | 7.1/7.6 | 10.2/10.7 | 13.5/13.8 | 16.8/17.1 | 20.1/20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥55 |
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80x20x6 | 100x40x6 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80x20x6 | 100x40x6 |
Product Highlights
Blockless PLC Splitter
1.1X16 PLC splitter, uniform distribution of optical signal
2.Small size, with the splitter type of mini module, LC/APC connector
3.Ideal for EPON, GPON, FTTH/FTTX network
Simple and Easy Connection
Blockless PLC splitter can be easily installed in fiber splice closure, optical distribution box for space saving and no need to splice.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
