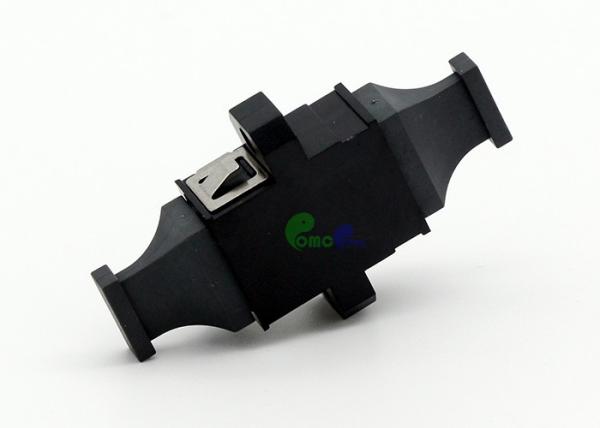

MTP / MPO Fiber Optic Adapter Simplex with full flange, Opposed Key Up to Down
Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
MPO fiber optical adapter comply with industry standard TIA - 568C. 3-2008 (standard of fiber optical system) and YD/T1272.5-2009 (fiber optical connector part v: MPO style). Main raw material is environmental grade PVC.
MTP/MPO adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fibers to 72 fiber, widely used in trunk cabling and cassettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs.
OMC could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.
OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Product Details
| Connector Type | MTP/MPO | Keyway | Opposed (Up-Down) |
| Adapter Port | Single | Footprint | MPO / MTP |
| Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
| Flammability Rate | UL94-V0 | Working Temperature | -25~70°C |
Product Features:
One piece design
Anti-Fungus Plastic
Internal Shutter Capable
Stainless Steel Clip
Full flange type
Application:
Adapters Bridge the Gap Between Fiber Optic Connectors, Our MTP/MPO fiber optic adapters are widely applied in 10G/40G/100G networks, data center, optical fiber communication system, cable television network, fiber optic access network and video transmission.
Product Tags:
|
|

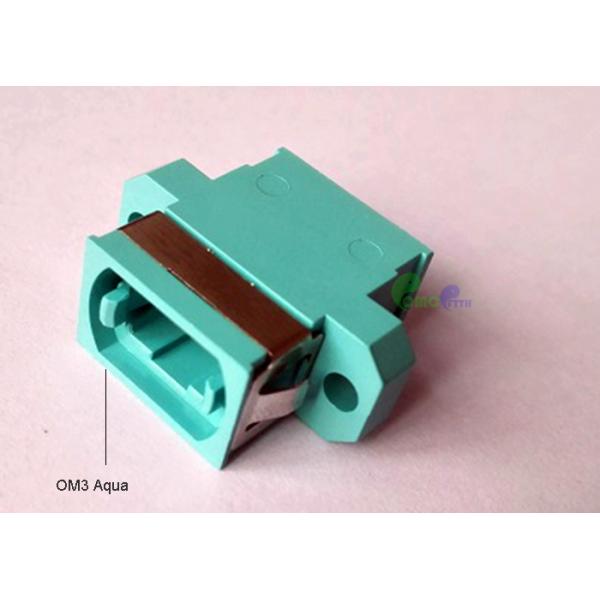

MTP / MPO Fiber Optic Adapter Simplex with full flange, Opposed Key Up to Down Images
|
